fireclass

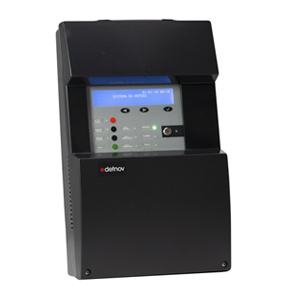

RAD-150

Bidirectional repeater for Detnov addressable CAD-150 series

Description

  • Bidirectional repeater for Detnov addressable CAD-150 series. Allows the remote supervision control of control panels networked (F-Network) up to 32 nodes. It shows the same incidences reflected in the control panel. It can be added in ring or bus networks configurations. LCD display and 4 control keys (reset, mute buzzer, mute sounders and activate sounders). Includes RS485 communication card (TRED-150). ABS plastic casing for wall mounting and even prepared to be embedded into it. Requires 230Vac and 2 batteries BTD-1207 (not included). Dimensions: 443 x 268 x 109 mm.
    • fireclass

    RAD-150 R

    Bidirectional repeater for Detnov addressable CAD-150 series

    Description

  • Bidirectional repeater for Detnov addressable CAD-150 series. Allows the remote supervision control of a fire control panel networked (S-Network) up to 32 nodes. It shows the same incidences reflected in the control panel. It can be added in ring or bus networks configurations. LCD display and 4 control keys (reset, mute buzzer, mute sounders and activate sounders). Includes RS485 communication card (TMB-251). ABS plastic casing for wall mounting and even prepared to be embedded into it. Requires 230Vac and 2 batteries BTD-1207 (not included). CPR certificate EN54-2 and EN54-4. Dimensions: 443 x 268 x 109 mm.
    • fireclass

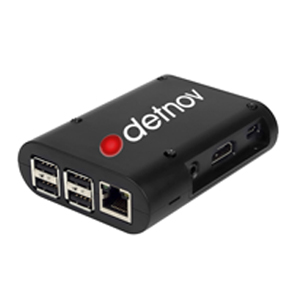

    RTD-150E

    Graphical repeater for Detnov addressable CAD-150 series

    Description

  • Graphical repeater for Detnov addressable CAD-150 series. Allows the visualization and graphical management of the detection installation through a (HDMI) monitor. Accepts all picture formats (jpeg, bmp, gif, etc.). Easy and intuitive use. It is recommended to use a touch screen interface. HDMI output and Ethernet connection for the connection of a repeaters network, using the existing Ethernet and Wi-Fi infrastructure. One of the repeaters must be connected to the fire system by means of a TMB-151 or TMB-251 communication cards. Power supply included.
    • fireclass

    RTD-150T

    Graphical 10” tablet repeater for Detnov addressable CAD-150 series

    Description

  • Graphical 10” tablet repeater for Detnov addressable CAD-150 series. It allows the visualization and graphic management of the fire detection facility through maps and pictures. Easy and intuitive use. Accepts all picture formats (jpeg, bmp, gif, etc.). Wi-Fi output available for networking several graphical repeaters RTD-150E. One of the repeaters must be connected to the fire system by means of a TMB-151 or TMB-251 communication cards. Dimensions: 296 x 195 x 32 mm. Power supply included.
    • fireclass

    RTD-150W

    Wireless graphical 7” tablet repeater for addressable CAD-150 series

    Description

  • Wireless graphical 7” tablet repeater for Detnov addressable CAD-150 series. It allows the visualization and graphic management of the fire detection facility through maps and pictures. Easy and intuitive use. Accepts all picture formats (jpeg, bmp, gif, etc.). Wi-Fi connection is required and at least one RTD-150E or RTD-150T acting as a master device. Dimensions: 188 x 113 x 10 mm. Power supply included.
