Integration module Ajax MultiTransmitter for security system
Advanced security systems require the use of modern communication devices to perform complex tasks and provide the user with a high level of protection. If the alarm system is outdated, it needs to be updated. It is unnecessary to replace all alarm devices and change many wires completely. Several Ajax devices can be added to the security system, transforming the old system into a new generation of burglar alarms, convenient control from the user's mobile phone, and advanced security technologies.
The Ajax MultiTransmitter integration module, which operates at 868.0-868.6 MHz and has 18 alarm zones, is used to add third-party wired sensors to the Ajax wireless control panel.
The radio integration module interacts with the intelligent control panel in an open area without obstacles at a distance of up to 2000 meters and indoors - between several floors. The broadcast signal is protected by encryption for the secure transmission of information. To check the operability of the transmitter, the control panel conducts a poll of the device every 12-300 seconds. The frequency is adjusted by the user individually.
The power supply of the integration module for the alarm system comes from the 100-240 V AC network. The transmitter can operate autonomously from the backup battery for 12 V for four days. In addition, the integration radio module can provide 12 V power to the system sensors. The transmitter board has terminals for connecting alarm zones and powering fire sensors.
Purpose of the integrated radio module for Ajax MultiTransmitter signalling
MultiTransmitter can transform wired alarms into a modern and reliable security system with the ability to control it through a mobile application and replace the old control panel.
The Ajax alarm transmitter connects third-party wired devices to Ajax's security system. Together with other Ajax devices, the MultiTransmitter integration module increases comfort and safety and ensures the reliable operation of fire and burglar alarms and intelligent home systems.
Features of the Ajax MultiTransmitter integration module
The radio network of the Ajax alarm system is capable of covering up to 35 km² using ReX signal repeaters. And if some rooms are impervious to radio waves, the MultiTransmitter wireless integration module will be the best solution for adding wired sensors to the system.
The Ajax wireless transmitter is connected to the alarm control panel (Hub, Hub Plus, Hub 2, Hub 2 Plus) via the Jeweler radio protocol. The alarm signal from the sensor connected by NC / NO contacts (supports contact types NO, NC (without R), EOL (NC with R), EOL (NO with R) is transmitted directly to the intelligent control panel.
The wireless alarm module can be integrated with outdoor or indoor detectors of vibration, movement, glass breakage, opening, thermal relays, IR barriers, gas and water leak sensors, and other third-party security devices, which will turn them into full-fledged system devices Ajax security.
All 18 wired zones can be configured in the Ajax mobile application. The sensors connected to the zones can work around the clock in security mode with a delay on entry or exit and, if necessary, participate in automation scenarios and activate sirens.
The maximum length of the wired connection of the detector by cable is up to 400 m. The radio integration module can be a power source for the connected device - 12 V DC up to 1 A for all power outputs of the detectors. If the connection to the wired device is lost, the user alarm will be notified immediately.

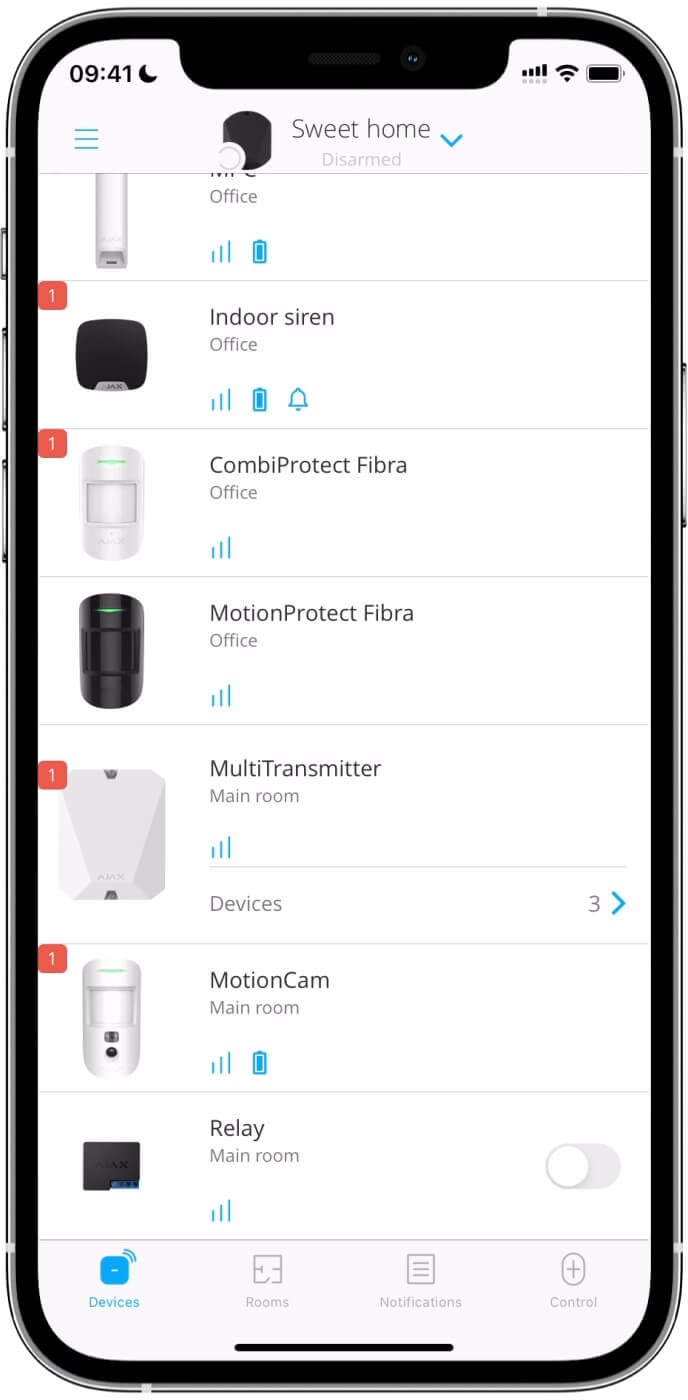

The MultiTransmitter wireless integration module is configured and tested in the Ajax mobile application. Connection to the security system occurs after scanning the QR code on the device's body. When connecting wired devices, you do not need to know the resistance value of the resistors. And if the device is misconnected, the security system will warn you of an error.
All notifications and alarms are sent to the alarm holder's phone via SMS or push notifications. There are five types of alarms: fire alarm, gas alarm, intrusion, medical care, alarm button. You can set the alarm type and room for each wired device. This information is indicated in the notification in the application and is also sent to the security company's console under the appropriate code. This increases the informativeness of the messages, as the user will know exactly where and what happened.
Protection of the Ajax MultiTransmitter integration radio module from external interference
The control panel receives information from the Ajax transmitter in encrypted form by the AES algorithm. In case of signal interruptions, it is immediately notified and switches to free frequencies.
Thanks to Jeweler radio technology, instant sending of those protected from interception, jamming, interference, and substitution of alarms are provided. To prevent the device from being disassembled or damaged by malicious users, there are two tampers on the housing of the wireless integration module, which respond with an alarm to an attempt to remove the module from the mounts or damage the housing.
