fireclass

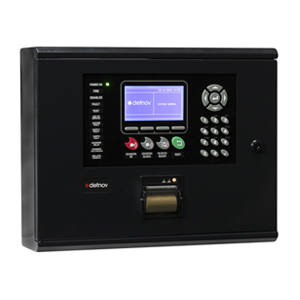

CAD-150-4 P

Addressable fire alarm control panel with 4 loops with printer built-in

Description

  • Addressable fire alarm control panel with 4 loops with printer built-in. Up to of 1.000 addresses (250 addresses per loop: detectors, modules, sounders or manual call points). Self-search and self-diagnosis functions. 250 programmable zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised siren outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500mA. Metal box. Multilingual keyboard. Includes TMB-251 communication card for connection to the network (S-Network) of control panels and repeaters through RS485. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 360 x 120 mm
    • fireclass

    CAD-150-8 P

    Addressable fire alarm control panel with 4 loops expandable up to 8 loops with printer built-in

    Description

  • Addressable fire alarm control panel with 4 loops expandable up to 8 loops with printer built-in, by means of 2 additional loops cards (TBUD-150). Up to of 2,000 addresses (250 free addresses per loop: detectors, modules, sounders or call points). Auto-search function, 250 programmable zones, 40 alarm and fault display zones via leds, 6.000 event history logs, free configuration and maintenance software, USB port configuration, 2 supervised sounder outputs and 2 free relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. Metal box, multilingual keyboard. Includes TMB-251 communication card for connection to the network (S-Network) of control panels and repeaters through RS485. CPR certificate EN 54-2, EN 54-4 and EN 54-13. Requires 2 BTD-1218 batteries not included. Dimensions: 525 x 450 x 120 mm.
    • fireclass

    CAD-150-8-PLUS-P

    Addressable fire alarm control panel with 4 loops expandable up to 8 loops with printer built-in

    Description

  • Addressable fire alarm control panel with 4 loops expandable up to 8 loops with printer built-in, by means of 2 additional loops card (TBUD-150). Up to of 2,000 addresses (250 free addresses per loop: detectors, modules, sounders or call points). Auto-search function, 250 programmable zones, 40 alarm and fault display zones via leds, 6.000 event history logs, free configuration and maintenance software, USB port configuration, 2 supervised sounder outputs and 2 free relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. Metal box, multilingual keyboard. Includes TMB-251 communication card for connection to the network (S-Network) of control panels and repeaters through RS485. CPR certificate EN 54-2, EN 54-4 and EN 54-13. Requires 2 BTD-1224 batteries not included. Dimensions: 525 x 450 x 200 mm.
