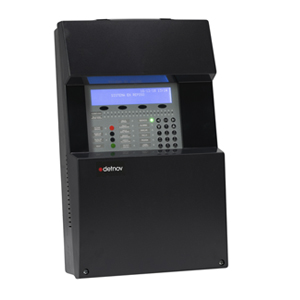

CAD-150-1-MINI

Addressable fire alarm control panel with 1 loop

Description

Addressable fire alarm control panel with 1 loop. Up to of 100 addresses (detectors, modules, sounders or manual call points) with the loop. Self-search and self-diagnosis functions. 250 programmable zones, 20 alarm and fault led display zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. ABS plastic casing for wall mounting and even prepared to be embedded into it. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN 54-2, EN 54-4. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 268 x 109 mm.

CAD-150-1

Addressable fire alarm control panel with 1 loop

Description

Addressable fire alarm control panel with1 loop. Up to of 250 addresses (detectors, modules, sounders or manual call points) with the loop. Self-search and self-diagnosis functions. 250 programmable zones, 20 alarm and fault led display zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. ABS plastic casing for wall mounting and even prepared to be embedded into it. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 268 x 109 mm

CAD-150-2

Addressable fire alarm control panel with 2 loop

Description

Addressable fire alarm control panel with 2 loops. Up to of 500 addresses (detectors, modules, sounders or manual call points) with the loop. Self-search and self-diagnosis functions. 250 programmable zones, 20 alarm and fault led display zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. ABS plastic casing for wall mounting and even prepared to be embedded into it. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 268 x 109 mm.

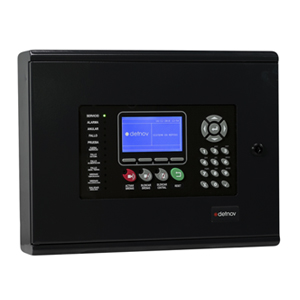

CAD-150-2-MB

Addressable fire alarm control panel with 2 loops and metal box

Description

Addressable fire alarm control panel with 2 loops. Up to of 500 addresses (detectors, modules, sounders or manual call points) with the loop. Self-search and self-diagnosis functions. 250 programmable zones, 20 alarm and fault led display zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. Metal box. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN 54-2, EN 54-4 and EN 54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 360 x 120 mm.

CAD-150-4

Addressable fire alarm control panel with 4 loops

Description

Addressable fire alarm control panel with 4 loops. Up to of 1.000 addresses (250 addresses per loop: detectors, modules, sounders or manual call points). Self-search and self-diagnosis functions. 250 programmable zones, 6.000 event history logs, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500mA. Metal box. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 360 x 120 mm

CAD-150-8

Addressable fire alarm control panel with 4 loops expandable up to 8 loops

Description

Addressable fire alarm control panel with 4 loops expandable up to 8 loops, by means of 2 additional loops cards (TBUD-150). Up to of 2,000 addresses (250 free addresses per loop: detectors, modules, sounders or call points). Auto-search function, 250 programmable zones, 40 alarm and fault display zones via leds, 6.000 event history logs, free configuration and maintenance software, USB port configuration, 2 supervised sounder outputs and 2 free relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus connection and to alarm central station (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. Metal box, multilingual keyboard. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BT1218 batteries not included. Dimensions: 525 x 450 x 120 mm

CAD-150-8 PLUS

Addressable fire alarm control panel with 4 loops expandable up to 8 loops

Description

Addressable fire alarm control panel with 4 loops expandable up to 8 loops, by means of 2 additional loops card (TBUD-150). Up to of 2,000 addresses (250 free addresses per loop: detectors, modules, sounders or call points). Auto-search function, 250 programmable zones, 40 alarm and fault display zones via leds, 6.000 event history logs, free configuration and maintenance software, USB port configuration, 2 supervised sounder outputs and 2 free relay outputs. Graphic LCD display. Auxiliary output of 24V 500 mA. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus connection and to alarm central station (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. Metal box, multilingual keyboard. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BT1224 batteries not included. Dimensions: 525 x 450 x 200 mm

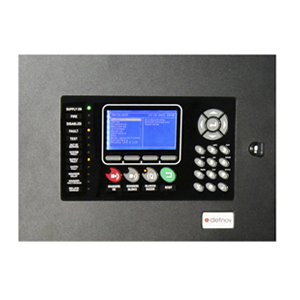

CAD-150-4-RACK

Addressable fire alarm control panel with 4 loops in rack format

Description

Addressable fire alarm control panel with 4 loops in rack format. Up to of 1.000 addresses (250 addresses per loop: detectors, modules, sounders or call points). Self-search and self-diagnosis function. 250 programmable zones, 6,000 event history log, free configuration and maintenance software, configuration via USB port, 2 supervised sounder outputs and 2 configurable relay outputs. Graphic LCD display. Auxiliary output of 24V 500mA. Metal box. Multilingual keyboard. Able to be networked (F-Network or S-Network) up to 32 control panels o repeaters via RS485 or fiber optics. Modbus output for integrations and Contact ID for connection to CMS (optional). Full remote access of the panel if a TED-151-CL card (Detnov Cloud) is added. CPR certificate EN54-2, EN54-4 and EN54-13. Requires 2 BTD-1207 batteries not included. Dimensions: 430 x 360 x 120 mm.
