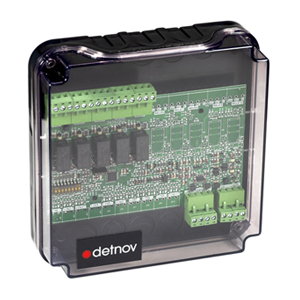

Addressable control module with built-in isolator of 5 free-voltage relay outputs
Description
Addressable control module with built-in isolator of 5 relay outputs free of voltage that provides two contacts C, NO, NC non-resettable. It takes five loop addresses. Requires external 24 Vdc power. LED status indicator. Connection through removable strips up to 2.5mm2 section.Includes mounting box. Dimensions: 172 x 170 x 48 mm. CPR certificate EN54-18 and EN54-17.

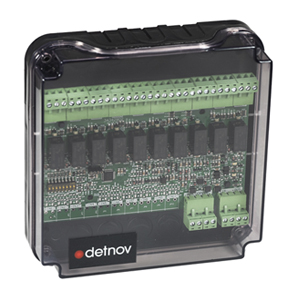

MAD-419-I
Addressable control module with built-in isolator of 10 free-voltage relay outputs
Description
Addressable control module with built-in isolator of 10 relay outputs free of voltage that provides two contacts C, NO, NC non-resettable. It takes ten loop addresses. Requires external 24 Vdc power. LED status indicator. Connection through removable strips up to 2.5mm2 section. Includes mounting box. Dimensions: 172 x 170 x 48 mm. CPR certificate EN54-18 and EN54-17.

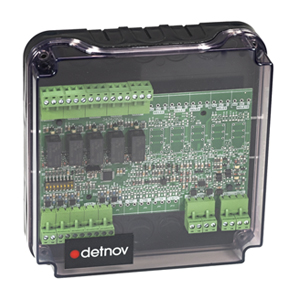

MAD-425-I
Addressable monitor and control module with built-in isolator of 5 supervised technical inputs and 5 free-voltage relay outputs
Description
Addressable monitor module and control with built-in isolator of 5 supervised technical inputs for the status signaling of equipment that provide NC or NO contact and 5 voltage-free relay outputs providing two non-resettable C, NO, NC contacts. It occupies 10 adressess in the loop. Requires external 24 Vdc power. LED status indicators. Connection through removable strips up to 2.5mm2 section. Includes mounting box. Dimensions: 172 x 170 x 48 mm. CPR certificate EN54-18 and EN54-17.

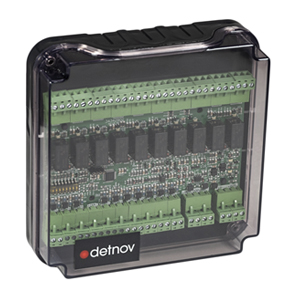

MAD-429-I
Addressable monitor and control module with built-in isolator of 10 supervised technical inputs and 10 free-voltage relay outputs
Description
Addressable monitor module and control with built-in isolator of 10 supervised technical inputs for the status signaling of equipment that provide NC or NO contact and 10 voltage-free relay outputs providing two non-resettable C, NO, NC contacts. It occupies 20 adressess in the loop. Requires external 24 Vdc power. LED status indicators. Connection through removable strips up to 2.5mm2 section. Includes mounting box. Dimensions: 172 x 170 x 48 mm. CPR certificate EN54-18 and EN54-17.

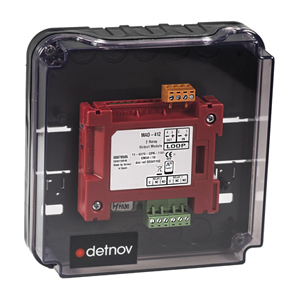

BOX-ONE
Transparent box for installation of one addressable module of the MAD-400 series
Description
Transparent box for installation of one addressable module of the MAD-400 series. Dimensions: 172 x 170 x 48 mm.

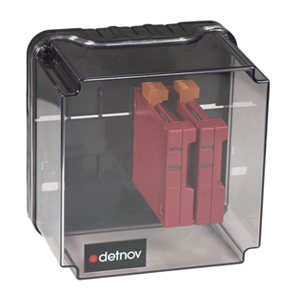

BOX-SIX
Transparent box for installation up to 6 addressable modules of the MAD-400 series
Description
Transparent box for installation of addressable modules of the MAD-400 series. Maximum capacity of 6 modules. Dimensions: 172 x 170 x 110 mm.
