Modular addressable control panel accessories - VESTA series

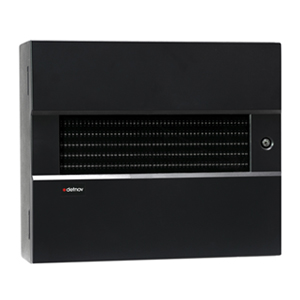

CAD-250-BLED | Expansion box up to 8 loops
Expansion box up to 8 loops with LEDs indicators for modular addressable control panels CAD-250
Description
Expansion box up to 8 loops, by means of additional 2 loops cards (TBUD-250) for modular addressable control panels CAD-250. 2 supervised sounder outputs and 2 free relay outputs. Auxiliary output of 24V 500 mA. 500 LEDs to visualize the status of the zones (250 alarm LEDs and 250 fault LEDs). Power supply with capacity for 2 BTD-1224 batteries (not included).

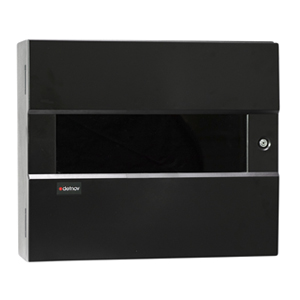

CAD-250-P
Expansion box up to 8 loops for modular addressable control panels CAD-250
Description
Expansion box up to 8 loops, by means of additional 2 loops cards (TBUD-250) for modular addressable control panels CAD-250. 2 supervised sounder outputs and 2 free relay outputs. Auxiliary output of 24V 500 mA. Power supply with capacity for 2 BTD-1224 batteries (not included).

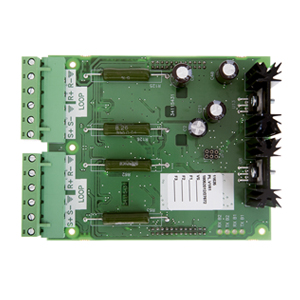

TBUD-250 | 2 loops microprocessor expansion card
2 loops microprocessor expansion card for modular addressable control panels CAD-250
Description
2 loops microprocessor expansion card (500 addresses). 250 addresses per loop (detectors, modules, sounders and manual call points). To be used in CAD-250 addressable control panels.
CAD-250-LED
Expansion box with LEDs indicators for modular addressable control panels CAD-250
Description
Expansion box with LEDs indicators for modular addressable control panels CAD-250. 500 LEDs to visualize the status of the zones (250 alarm LEDs and 250 fault LEDs). Power supply with capacity for 2 BTD-1224 batteries (not included). Dimensions: 533 x 453 x 212 mm

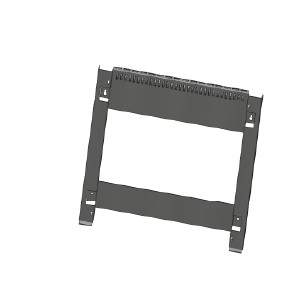

TOT-250
TOT-250 | Totem mounting accessory for CAD-250
Description
Totem mounting accessory for CAD-250 addressable control panels. Required when CAD-250-B or CAD-250-BLED expansion boxes are used. It is requires 1 TOT-250 per cabinet.

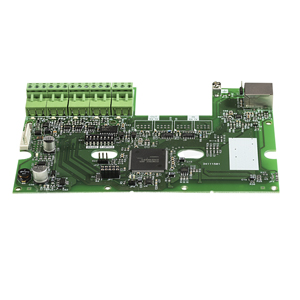

TMB-252
Communication card for modular addressable control panels CAD-250
Description
Communication card for modular addressable control panels CAD-250. Includes Ethernet port, RS485 output for network connection of control panels (T-Network), 2 x RS485 for integrations, output for serial printer. Includes electric isolation circuit between nodes. 1.000 meters maximum distance between nodes.
TMBFI-252
Fiber optic communication card for modular addressable control panels CAD-250
Description
Fiber optic communication card for modular addressable control panels CAD-250. Includes Ethernet port, RS485 output for network connection of control panels (T-Network), 2 x RS485 for integration, output for serial printer. Includes electric isolation circuit between nodes. 1.000 meters maximum distance between nodes. Allows mixed RS485 and fiber optic connection.
